20′ Banks Fishing Dory, USCG – Outboard Motor Well

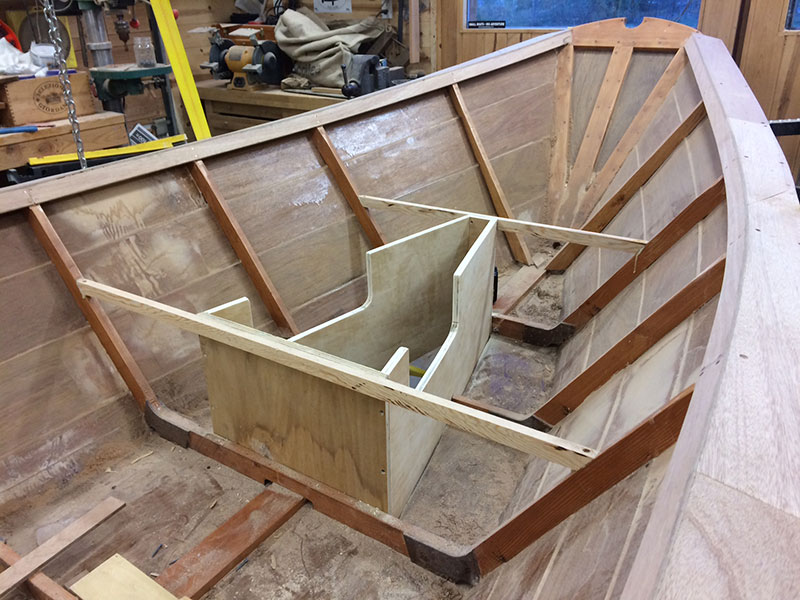

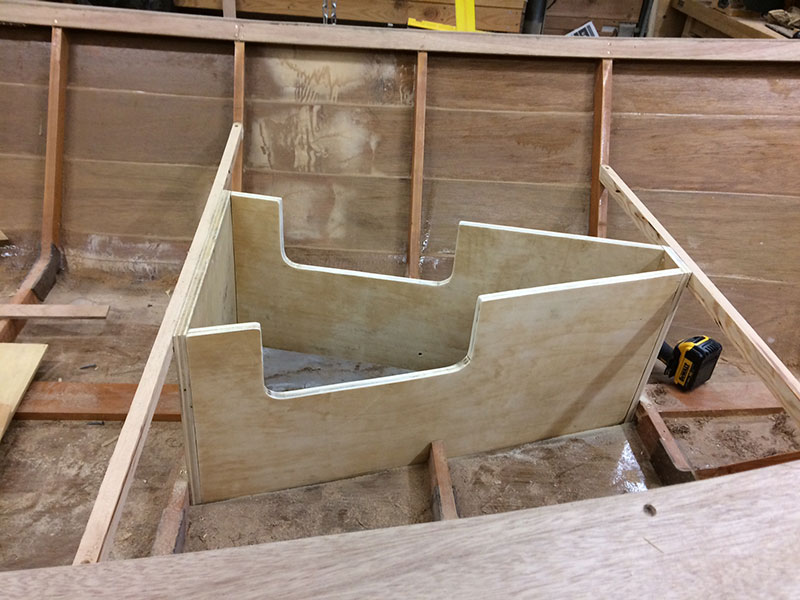

Today I nearly worked all day calculating the outboard motor well. What is left to design and build is the removable tunnel baffle that will start at the bottom “V” of the motor well and come up to the bottom of the rear notch. This will force the prop wash to propel the boat naturally. The large notch cutouts on each side of the well will allow the motor to swivel to the port and starboard so the boat can be maneuvered with ease.
